GrandMfg? Tubular Brass Oil level Indicator Gauge
Tubular Brass oil level gauge indicator with vented hole
Brass oil or liquid level Gauge with glass tube.

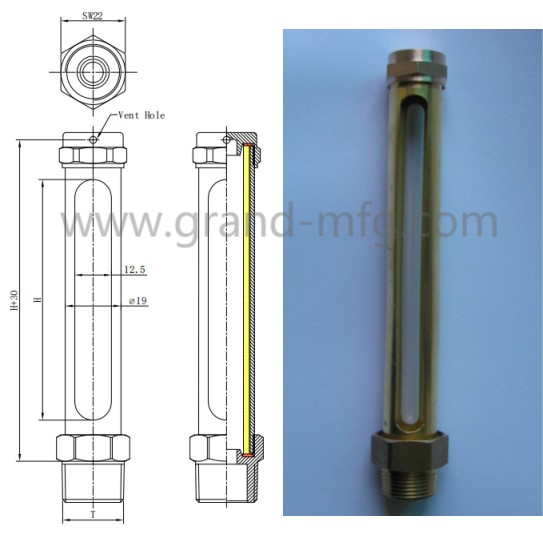

H=length of window(mm)
Total length=H+30mm (the distance of vented hole to the middle of the connector)
Housing: Brass Tube(19mm tube and 16mm tube)
Tube: Borosilicate Glass Tube
O-Ring and Flat gaskets: NBR Rubber.
Thread szie: M12x1.25, M14x1.5, M16x1.5
G1/4”, G3/8”, G1/2”
NPT1/4, NPT3/8, NPT1/2”
Temperature resistant: -20’C to 120 ‘C. / 0’F to 260 ‘F
The length of the tube: 50mm to 500mm
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.
